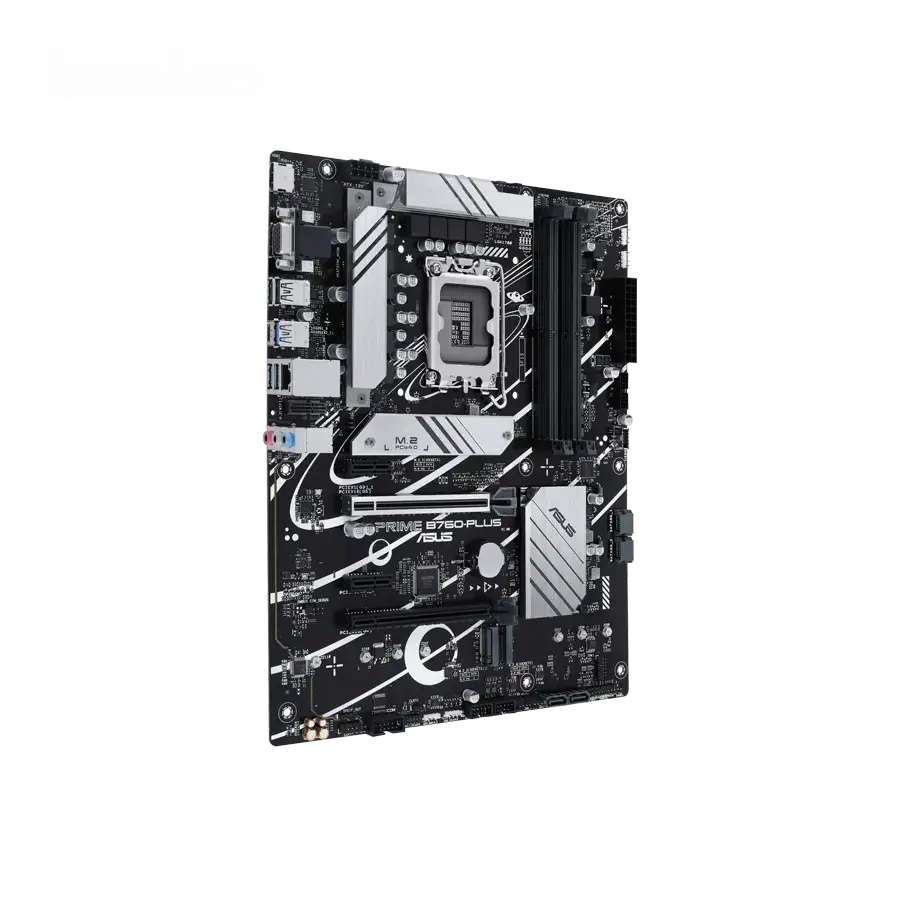

مادربرد ایسوس MOTHERBOARD ASUS Prime B760-PLUS D5

244X305 میلیمتر

ATX

1 عدد

Intel LGA 1700

B760

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

SATA RAID 0,1,5,10

4 عدد

دو کاناله

192GB

DDR5

دارد

ندارد

4xDIMM, Max. 192GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem II, * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/ Memory Support under the Support tab or visit https:/ / www.asus.com/ support/ ., * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

2 عدد, Intel 13th & 12th Gen Processors, 1xPCIe 5.0 x16 slot, Intel B760 Chipset, 1xPCIe 4.0 x16 slot (supports x4 mode)

ندارد

ندارد

1xDisplayPort**, 1xVGA port, 1xHDMI port***, * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., ** Supports max. 4K@60Hz as specified in DisplayPort 1.4., *** Supports 4K@60Hz as specified in HDMI 2.1.

2 عدد, 2xPCIe 3.0 x1 slots

3 عدد

Key M

1 عدد

2 عدد, 1×24-pin Main Power connector, 1×8-pin +12V Power connector

2 عدد

4 عدد

2 عدد

1 عدد

2 عدد

1 عدد

1 عدد

1 عدد

1 عدد

1 عدد

Realtek 2.5Gb Ethernet

Realtek 7.1 Surround Sound High Definition Audio CODEC*

7.1 کانال

3 عدد

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports up to 24-Bit/192 kHz playback, Audio Features, – Audio Shielding, – Premium audio capacitors, – Dedicated audio PCB layers, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1xVertical M.2 slot (Key E)

128 Mb Flash ROM, UEFI AMI BIOS

Overvoltage Protection

Software Features, ASUS Exclusive Software, Armoury Crate, -Aura Creator, -Aura Sync, -Fan Xpert 2+, -Power Saving, AI Suite 3, -DIGI+ VRM, -PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, Operating System, Windows 11, Windows 10 64-bit

WOL by PME, PXE

UEFI BIOS, ASUS EZ DIY, -ASUS CrashFree BIOS 3, -ASUS EZ Flash 3, -ASUS UEFI BIOS EZ Mode
