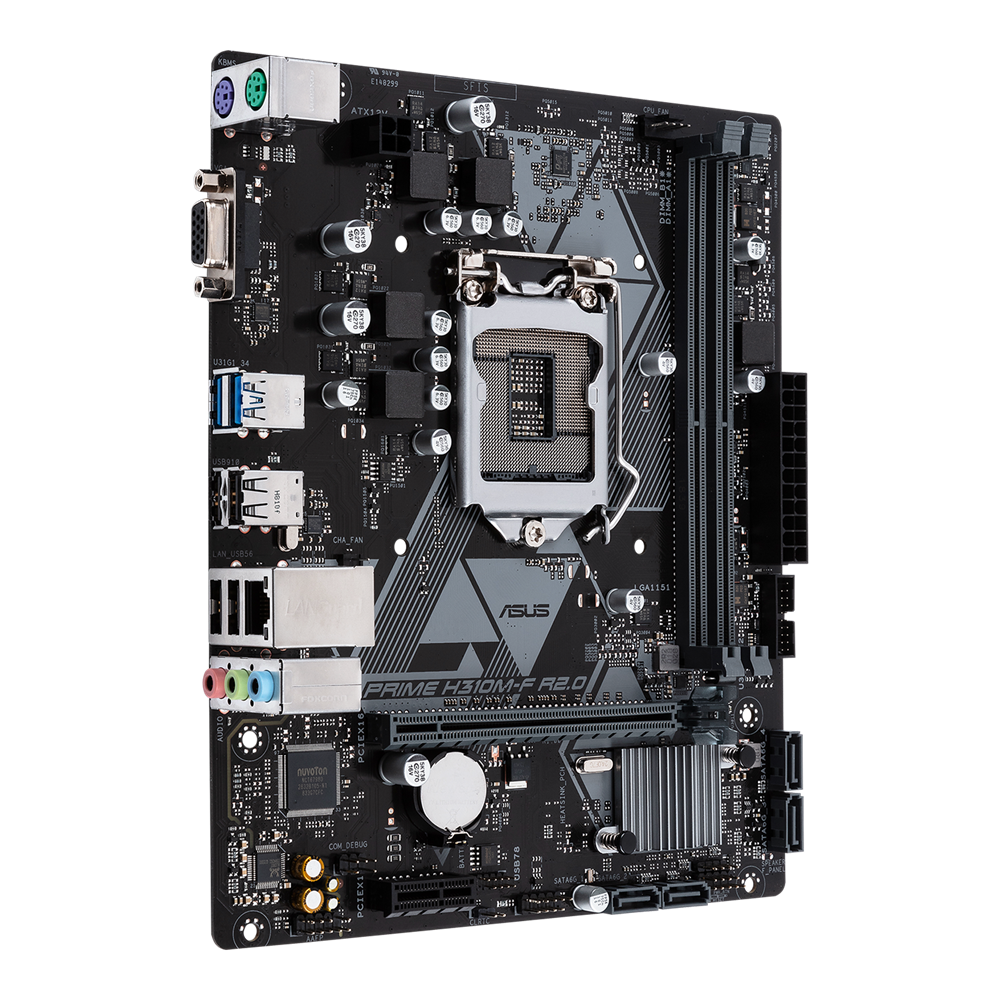

مادربرد ایسوس PRIME H310M-F R2.0 ASUS

Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® H310

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : D-Sub ports
– Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Clear Video HD Technology, Insider™

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x1

Intel® H310 Chipset :
4 x SATA 6Gb/s port(s), gray,

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek ALC887/897 8-Channel High Definition Audio CODEC
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 4  Phase digital power design
ASUS OptiMem：
– Optimem (Improved DDR4 stability)
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
4 x USB 2.0
3 x Audio jack(s)

1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x SCD (by region)

64 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-languageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

uATX Form Factor
8.4  inch x 7.0  inch ( 21.34  cm x 17.78  cm )
