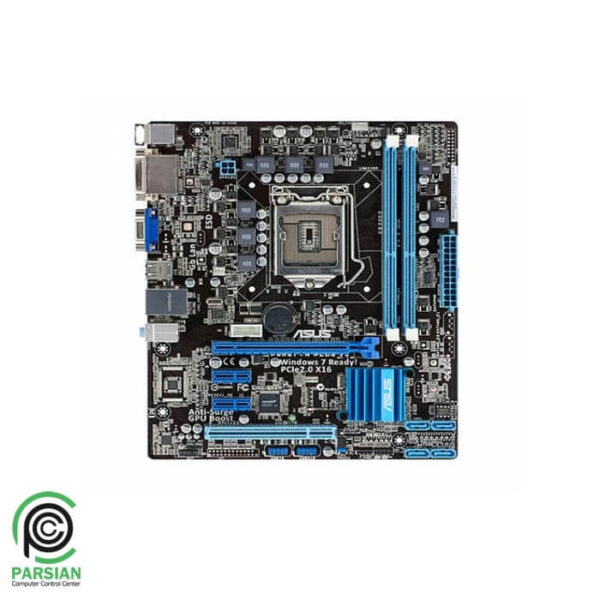

| Motherboard Details | |
|---|---|
| CPU Make | Intel |
| Chipset | H61 |
| Form Factor | Micro-ATX |
| CPU socket | LGA 1155/Socket H2 |
| Total RAM | 16GB |
| Total USB | 8 USB slots |
| Motherboard Graphics | |
|---|---|
| GPU Interface | PCIe v2.x |
| GPU Onboard | No |
| SLI | 1 Nvidia SLI GPUs |
| Crossfire | 1 AMD/ATI Crossfire GPUs |
| Expansion Slots | 1x 2 x PCIe x1 |
| Motherboard Memory | |
|---|---|
| Memory Type | 2xDDR3 |
| Memory Type(ECC) | Non-ECC |
| Memory Channel | Dual |
| Memory Capacity | 16GB DDR3 |
| Memory Total | 16GB |
| Memory Slots | 2xDIMM |
| Memory Speed | DDR3 800Mhz DDR3 1066Mhz DDR3 1333Mhz |
| Motherboard SATA | |
|---|---|
| SATA 1 | No |
| SATA 2 | 4 x SATA 2 |
| SATA 3 | No |
| SATA Speed | 3Gb/s |
| External SATA | – |
| RAID | Yes |
| Internal I/O Connectors | |
|---|---|
| Internal USB | 4 x USB 2.0 |
| Internal I/O | 1 x 24 pin power connector 2 x fan header 1 x CPU fan header SPDIF Out connector System panel connector |
| Back Panel Connectors | |
|---|---|
| Back Panel USB | 4 x USB 2.0 |
| Back Panel I/O | D-Sub connector DVI connector Line In connector Mic Out connector 7.1 Surround Sound Audio Input Output PS/2 connector |
