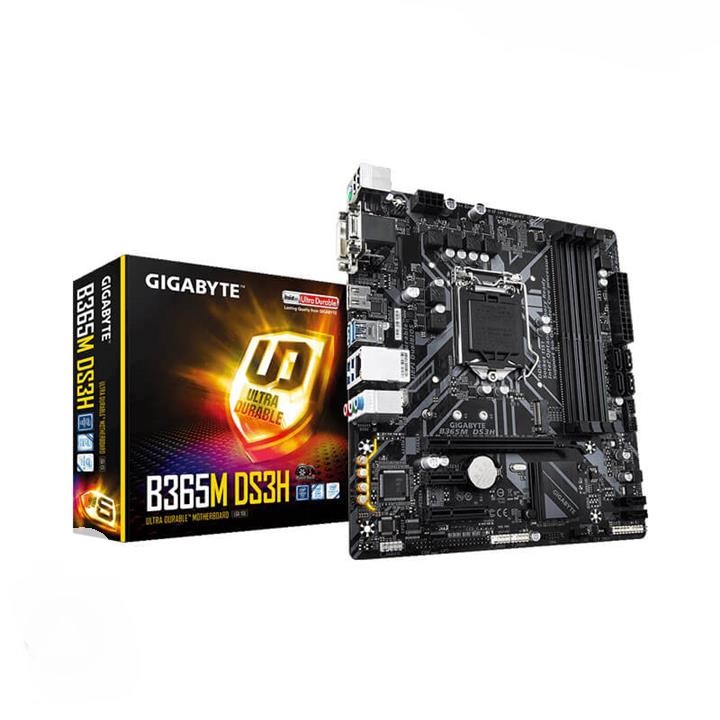

مشخصات فنی MB: Gigabyte B365M DS3H
مشخصات
استانداردهای حافظه DDR4 2666/2400/2133 مگاهرتز
برد تغذیه 6 فاز
پردازنده های پشتیبانی شده Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
پردازندههای پشتیبانی شدهSupport for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel® Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package\r\nL3 cache varies with CPU
پشتیبانی از RAIDRAID 0
پورت PS/2 یک عدد کومبو
پورت USB 3.1 چهار عدد
تعداد سوکت پردازنده یک عدد
تعداد مسیرهای PCI Express16 مسیر
توضیحات تکمیلی پورتها ۱ عدد PS/2 keyboard/mouse port\r\n۱ عدد D-Sub port\r\n۱ عدد DVI-D port\r\n۱ عدد HDMI port\r\n۴ عدد USB 3.1 Gen 1 ports\r\n۲ عدد USB 2.0/1.1 ports\r\n۱ عدد RJ-45 port\r\n۳ عدد audio jacks
توضیحات تکمیلی تمامی پورتهای USB مادربرد۶ عدد USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)\r\n۶ عدد USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
توضیحات تکمیلی قسمت ذخیرهسازی (Storage)۱ عدد M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)\r\n۶ عدد SATA 6Gb/s connectors\r\nپشتیبانی از RAID 0, RAID 1, RAID 5 and RAID 10\r\nRefer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors\r\nIntel Optane Memory Ready
توضیحات تکمیلی هدرها۱ عدد USB 3.1 Gen 1 header\r\n۲ عدد USB 2.0/1.1 headers\r\n۱ عدد CPU fan header\r\n۱ عدد RGB LED strip header\r\n۱ عدد front panel header\r\n۱ عدد front panel audio header\r\n۱ عدد S/PDIF Out header\r\n۱ عدد Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)\r\n۱ عدد serial port header\r\n۱ عدد parallel port header\r\n
توضیحات کارت صداRealtek ALC887 codec\r\nHigh Definition Audio\r\n2/4/5.1/7.1-channel\r\nTo configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver\r\nSupport for S/PDIF Out
حافظه۴ عدد DDR4 DIMM sockets supporting up to 64 GB of system memory\r\nDual channel memory architecture\r\nSupport for DDR4 2666/2400/2133 MHz memory modules\r\nSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)\r\nSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules\r\nSupport for Extreme Memory Profile (XMP) memory modules\r\nTo support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel Core i9/i7/i5 processor
دکمهها، سوییچها و جامپرها۱ عدد Clear CMOS jumper
سایر توضیحات بایوس۲ عدد 128 Mbit flash\r\nUse of licensed AMI UEFI BIOS\r\nSupport for DualBIOS\r\nPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
سایر توضیحات کارت گرافیکIntegrated Graphics Processor-Intel HD Graphics support\r\n۱ عدد D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz\r\n۱ عدد DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz\r\n – The DVI-D port does not support D-Sub connection by adapter\r\n۱ عدد HDMI port, supporting a maximum resolution of 4096×2160@30 Hz\r\n – Support for HDMI 1.4 version and HDCP 2.2\r\nSupport for up to 3 displays at the same time\r\nMaximum shared memory of 1 GB\r\nActual support may vary by CPU
سایر توضیحات مربوط به اسلاتها۱ مسیر PCI Express x16 slot, running at x16\r\n۱ مسیر PCI Express x4 slot\r\n۱ مسیر PCI Express x1 slot
فرم فاکتورmicroATX
قابلیتهای مادربوردنقاط کنترل ولتاژ
کارت صداRealtek ALC887 codec
کانکتور SATA 3.0 شش عدد
کانکتورهای برق کانکتور برق اصلی 24 پبن ATX
نوع اسلات M.2PCI-E 3.0 x4
هدر USB 2.0 دو عدد
